| Product Details | |
|---|---|
|

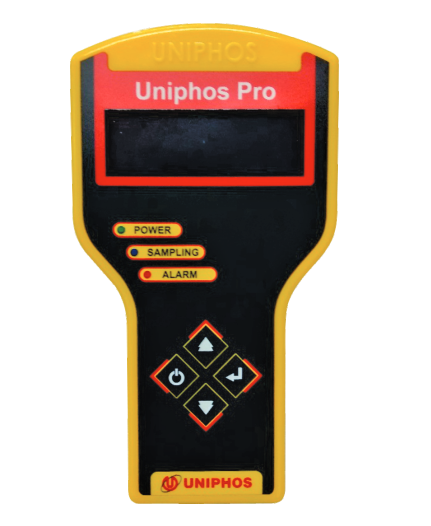

Type: Portable Multi-Gas Detector |
| Delivery: Within 1 week | |
| Warranty: 12 Months | |
| Features: Advanced micro-processor based technology, Soft power ON/OFF, Accurate, Handy and easy to use, Easy to replace removable battery compartment, Powerful inbuilt air sampling pump (30 m sample draw capability) for remote sampling, On-board memory, stores test results along with date and time stamp USB based communication with Computer |
|
| Specification | |
|---|---|
| Weight | 500 gms |
| Sensors | Electrochemical / NDIR / Solid-state sensor |
| Runtime | About 7 - 8 hours |
| Display | Large 20 X 4 Alphanumeric OLED |
| Operating Temperature | -10°C to 50°C |
| Power Source | 7.4V mAh Li-ion rechargeable battery pack |
| Accuracy | Inherently +/- 2% FS (depends on calibration gas & method) |
| Drift | Less than 2% of the signal per month at constant temperature & pressure |
| Inbuilt Pump | Flow rate: 400 to 800 ml/min Power: 3.5V DC, 60 mAh |
| Range & Resolution | Refer to Annexure 1 |
| Sampling Modes | Draws gas sample on a continuous basis, pump remains ON until SET key is pressed |
| Alarm Set Point | One user-settable alarm set point (for low-range monitors) |
| Data Transfer | USB communication for data transfer to a computer |
| Data Storage | Stores test records with gas concentration, alarm set points, date & time |
| Function Keys | UP, DOWN, SET & ENTER |
| Instrument Enclosure | High Impact ABS |
| Size | Height: 190 mm Width1: 110 mm Width2: 65 mm Depth: 40 mm |
| Accessories | Dust filter, Battery charger, and Data downloading cable |
| Pricing | Vendor 1 | Vendor 2 | Vendor 3 |
|---|---|---|---|
| VOC Detector (per unit) | ₹1,68,000 | ₹1,75,000 | ₹1,55,000 12% Saving |
