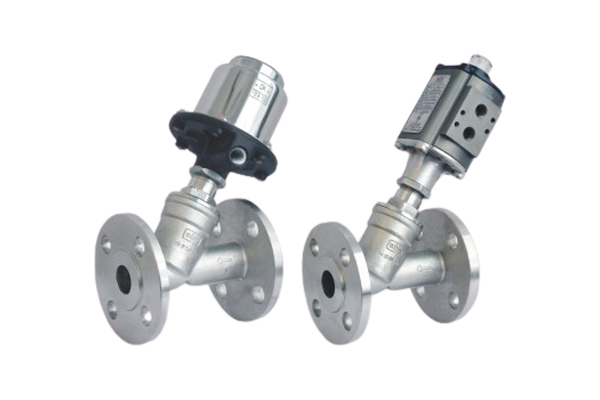

This valve is also called the Y type Control Valve or the Y type Pneumatic Control Valve because of its body shape. It is shaped like a Y angled and hence it is also known as an Angle Type Control Valve.
Price as per Requirement
Vendor Details
Standard Hardware
RUTUBH PATEL
0 /5   (0 ratings)
Annual Turnover : Rs. 5 Crore
Area of Expertise : Industrial Hardware
Product Specifications
Valve Temperature: |
up to 220°C |
On/Off Control Valve: |
2 /2 Way Pneumatic Single & Double Acting Angle Type |
Body: |
Aluminium / S.S.304 |
Air Connection: |
1/4″ BSP |
Operating Pressure (1/2″to 2″): |
4.5 to 7 BAR |
Operating Pressure (2.1/2″ to 4″): |
5 to 7 Bar |
Operating Cycles: |
350 to 650 Cycles / Hr |
Valve Size Range: |
1/2″ to 4″ |
Valve Pressure: |
up to 10 Bar |
Configuration: |
2/2 & 3/2 Pneumatic Diaphragm |
