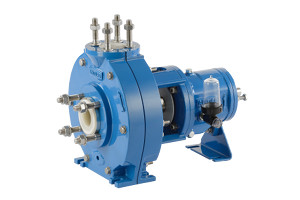

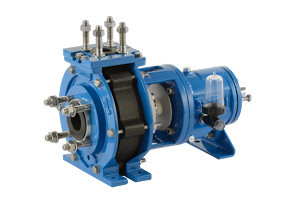

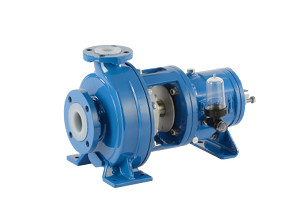

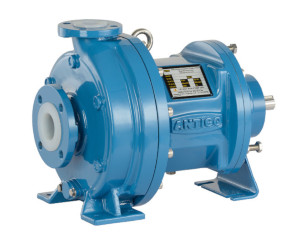

NJRP Series pumps are injection moulded, horizontal, back pull-out, volute casing type, single stage, center line discharge, end-suction centrifugal pumps. Cast iron frames with injection moulded wetted parts are designed to handle higher hydraulic pressures and flange loads suitable for hazardous, corrosive and toxic media. Dimensional and design criteria of NJRP pumps conform to ISO 2858 / ISO 5199 / EN 22858.
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Maximum Temp: |
GFRPP (90°C), PP-H (82°C) |
Head [H] up to: |
100 m (328 ft) |
Motor Power [P] up to: |
55 kW (75 hp) |
Viscosity up to: |
150 mPas (cP) |
Suction Lift: |
8 m (26 ft) with priming chamber* |
Maximum Working Pressure: |
16 bar (232 psi) |
Maximum Specific Gravity [SG]: |
1.8 - 3 |
Minimum Continuous Flow [MCF]: |
2.5 m3 /hr (11 US gpm) |
Suction & Delivery Connection: |
ANSI B16.5, DIN2501, BS4504, BSP, NPT |
Capacity [Q] up to: |
40 m3 /hr (176 US gpm) |
Operating Frequency: |
50 Hz |
