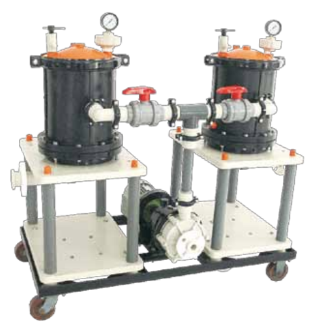

Experience unparalleled filtration efficiency with Diaflow GFPP Plates Duplex Filtration System - PFU 200 GF Duplex. Crafted with precision, this system offers dual-stage filtration capabilities for optimal purification of liquids. The GFPP plates ensure robust performance and durability, while the duplex configuration enhances filtration capacity and versatility. Ideal for industrial applications, this system delivers superior filtration performance, removing impurities with ease. Elevate your filtration process with Diaflow PFU 200 GF Duplex - the ultimate solution for clean, purified liquids.
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Dia. Of Plates: |
204 mm |
MOC - Plates: |
PP |
Area Of Filter: |
1.2 Sq Mtr |
Filter Rate: |
10,000 To 12,000 Lit/Hr |
Particle Size: |
5 To 10 Microns |
Max. Operating Temp.: |
70 ̊C |
Max Capacity: |
12,000 Lit/Hr |
Max. Pressure: |
2.2 kg/Cm2 |
Pump Model: |
SSP 40 |
Pump Suction/Discharge: |
1.5”(40mm) * 1”(25mm) |
Motor Type Recommended: |
2 hp/2900 Rpm |
Filter Outlet Connection: |
1 1/4” BSP |
MOC - Chamber: |
Moulded GFPP~ 2 Nos |
No. Of Plates In Chamber Each: |
17 + 17 |
