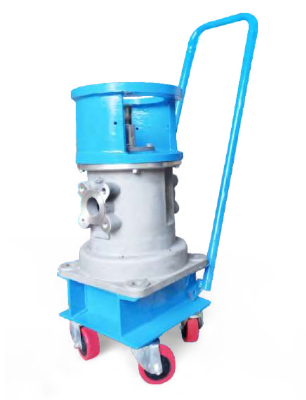

Series QSTP Pumps are replacement of long shaft vertical submersible pumps used in chemical plants from several years, these pumps are very easy to install at site, motor is mounted on the pump itself. Features and Advantages of Fully open Turbine type impeller for clear fluid transfer - Floating impeller, Different mechanical seal options available, Can take suction lift from 3m to 5m, No foot valve required, Requires very less space at site, Can be mounted on tanks or away from tank, Low NPSH required, Low overhang shaft arrangement giving minimum deflection at the seal faces, Mechanical seal is cooled and flushed by process fluid itself, Excellent for handling solvents from barrels and from tank farms to the charging vessels, Seal leakage can easily be detected from hole in priming chamber. Field of Applications include Petrochemical, Oil & Gas, Steel Industry, Automotive, Agriculture, Tank Farm, Pulp and Paper, Chemical, Semiconductor, Food Processing, Power Generation, Pharmaceuticals Water Treatment, Paper Stock, Pipeline, General Industries, Textile, Mining. Pump has Thermosyphon and Liquid Sealing Systems. Pump is available in following material - WCB (CAST STEEL) , CF8 (SS-304), CF8M (SS-316), CF3 (SS-304L), CF3M (SS-316L), CN7M (ALLOY-20), CW12MW (HASTELLOY-C), N12MV (HASTELLOY-B), DUPLEX AND SUPER DUPLEX ALLOYS
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Delivery Head (upto): |
45 m |
Operating Temperature: |
-60°C to 150°C |
Operating Frequency: |
50 Hz |
Flow Rate: |
1 - 40 m3/hr |
