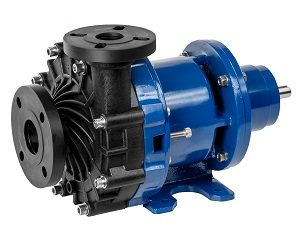

MZ pumps are injection moulded, non metallic, magnetic drive, long & close coupled, horizontal, side discharge, single stage, end suction centrifugal pumps with rotary shaft design to surpass performance expectation in the most demanding chemical applications and environments.
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Maximum Specific Gravity [SG]: |
1.8 - 3 |
Minimum Continuous Flow [MCF]: |
2.5 m3 /hr (11 US gpm) |
Suction & Delivery Connection: |
ANSI B16.5, DIN2501, BS4504, BSP, NPT |
Capacity [Q] up to: |
220 US gpm (50 m3 /hr) |
Operating Frequency: |
60 Hz |
Maximum Temp: |
GFRPP (90°C), PVDF (104°C) |
Head [H] up to: |
176 ft (54 m) |
Motor Power [P] up to: |
25 hp (18.5 kW) |
Viscosity up to: |
150 mPas (cP) |
Suction Lift: |
4 m (13 ft) with priming chamber* |
Maximum Working Pressure: |
10 bar (145 psi) |
