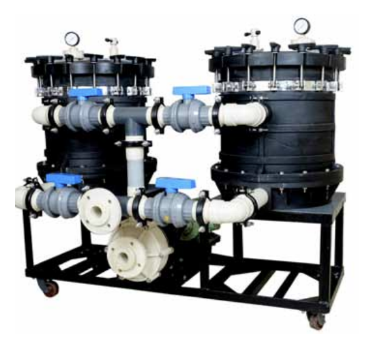

Discover the Diaflow Plate Filtration Systems - PFU 400 GF Duplex, revolutionizing your filtration needs with efficiency and precision. Engineered for excellence, this system offers unparalleled performance in industrial filtration. With its duplex design, it ensures continuous operation, minimizing downtime and maximizing productivity. The GF Duplex model guarantees superior filtration, tackling even the most challenging applications with ease. From pharmaceuticals to chemical processing, trust Diaflow to deliver exceptional results. Upgrade your filtration process today with the PFU 400 GF Duplex and experience the difference in quality and reliability. *Available with diaphragm pump also
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Particle Size: |
5 To 10 Microns |
Max. Operating Temp.: |
70 ̊C |
Max Capacity: |
30,000 Lit/Hr |
Max. Pressure: |
2.2 kg/Cm2 |
Pump Model: |
DCP 60 |
Pump Suction/Discharge: |
2”(50mm) * 1 1/2”(40mm) |
Motor Type Recommended: |
5 hp/2900 Rpm |
Filter Outlet Connection: |
2” BSP |
MOC - Chamber: |
Moulded GFPP ~ 2 Nos |
No. Of Plates In Chamber Each: |
10 + 10 |
Dia of Plates: |
375 mm |
MOC - Plates: |
PP |
Area Of Filter: |
2.26 Sq Mtr |
Filter Rate: |
30,000 Lit/Hr |
