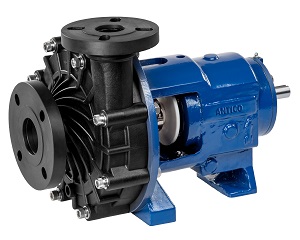

NZ Series long-coupled thermoplastic mechanical seal process pump provides the most economical, combinatorial design which simplifies maintenance, reduces inventory, is able to give a near constant head for a wide flow range. NZ pumps are injection moulded, horizontal, side discharge, back pull-out, volute casing type, single stage, end suction centrifugal pumps.
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Head [H] up to: |
176 ft (54 m) |
Motor Power [P] up to: |
25 hp (18.5 kW) |
Viscosity up to: |
150 mPas (cP) |
Suction Lift: |
8 m (26 ft) with priming chamber* |
Maximum Working Pressure: |
10 bar (145 psi) |
Maximum Specific Gravity [SG]: |
1.8 - 3 |
Minimum Continuous Flow [MCF]: |
2.5 m3 /hr (11 US gpm) |
Suction & Delivery Connection: |
ANSI B16.5, DIN2501, BS4504, BSP, NPT |
Capacity [Q] up to: |
220 US gpm (50 m3 /hr) |
Operating Frequency: |
60 Hz |
