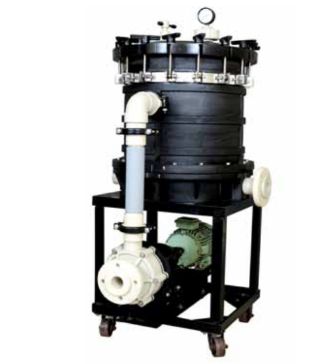

Discover the Diaflow Plate Filtration Systems - PFU 400 GF, revolutionizing filtration efficiency. Engineered with precision, this system ensures optimal performance in industrial filtration processes. Its innovative design integrates advanced technology for seamless operation, delivering exceptional results. The PFU 400 GF offers unparalleled filtration capability, catering to diverse industrial needs with ease. With reliability at its core, this filtration system guarantees superior quality and durability. Upgrade your filtration process with the Diaflow Plate Filtration Systems - PFU 400 GF, the ultimate solution for industrial filtration requirements. *Available with diaphragm pump also
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
Filter Rate: |
5,000 To 6,000 Lit/Hr |
Particle Size: |
5 To 10 Microns |
Max. Operating Temp.: |
70 ̊C |
Max Capacity: |
20,000 Lit/Hr |
Max. Pressure: |
2.2 kg/Cm2 |
Pump Model: |
DCP 50 |
Pump Suction/Discharge: |
2”(50mm) * 1 1/2”(40mm) |
Motor Type Recommended: |
3 hp/2900 Rpm |
Filter Outlet Connection: |
2” BSP |
MOC - Chamber: |
Moulded GFPP |
No. Of Plates In Chamber Each: |
10 |
Dia of Plates: |
375 mm |
MOC - Plates: |
PP |
Area Of Filter: |
1.13 Sq Mtr |
