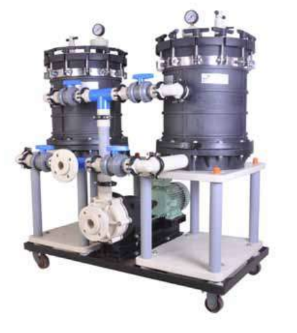

Diaflow GFPP Plates Duplex Filtration Systems - PFU 300 GF Duplex offer advanced filtration solutions. Crafted with Diaflow GFPP Plates, these systems ensure superior filtration performance. The PFU 300 GF Duplex model provides efficient duplex filtration for various industrial applications. With robust construction and high-quality materials, it ensures durability and reliability. Ideal for enhancing filtration efficiency in demanding environments. *Also available with Diaphragm pump
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
MOC - Plates: |
PP |
Area Of Filter: |
3.0 Sq Mtr |
Filter Rate: |
20,000 To 24,000 Lit/Hr |
Particle Size: |
5 To 10 Microns |
Max. Operating Temp.: |
70 ̊C |
Max Capacity: |
24,000 Lit/Hr |
Max. Pressure: |
2.2 kg/Cm2 |
Pump Model: |
DCP 50 |
Pump Suction/Discharge: |
2”(40mm) * 1.5”(25mm) |
Motor Type Recommended: |
3 hp/2900 Rpm |
Filter Outlet Connection: |
1 1/2” BSP |
MOC - Chamber: |
Moulded GFPP ~ 2 Nos. |
No. Of Plates In Chamber Each: |
20 + 20 |
Dia. Of Plates: |
304 mm |
