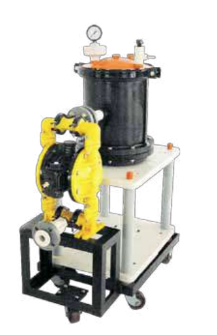

Diaflow GFPP Plates Filtration System - PFU 200 GF offers unparalleled filtration efficiency. Crafted with high-quality GFPP plates, it ensures optimal performance in various filtration applications. Engineered to meet stringent standards, this system excels in removing impurities and achieving superior clarity in liquids. With its robust construction and advanced features, PFU 200 GF delivers reliable filtration results consistently. Experience enhanced productivity and quality assurance with Diaflow's cutting-edge filtration technology. *Also available with Diaphragm pump
Price as per Requirement
Vendor Details
Chem Pump and Equipments
Nimish Kothari
.png)
0 /5
(0 ratings)
Annual Turnover : Rs. 15 Crore
Area of Expertise : Pumps - Metallic, Non-metallic, AODD, Thermic Fluid; Valves, Filtration Units, Priming Chamber
Product Specifications
No. Of Plates In Chamber Each: |
17 |
Dia. Of Plates: |
204 mm |
MOC - Plates: |
PP |
Area Of Filter: |
0.6 Sq Mtr |
Filter Rate: |
5,000 To 6,000 Lit/Hr |
Particle Size: |
5 To 10 Microns |
Max. Operating Temp.: |
70 ̊C |
Max Capacity: |
6,000 Lit/Hr |
Max. Pressure: |
1.8 kg/Cm2 |
Pump Model: |
SSP 25 |
Pump Suction/Discharge: |
1”(25mm) * 1”(25mm) |
Motor Type Recommended: |
1 hp/2900 Rpm |
Filter Outlet Connection: |
1 1/4” BSP |
MOC - Chamber: |
Moulded GFPP |
